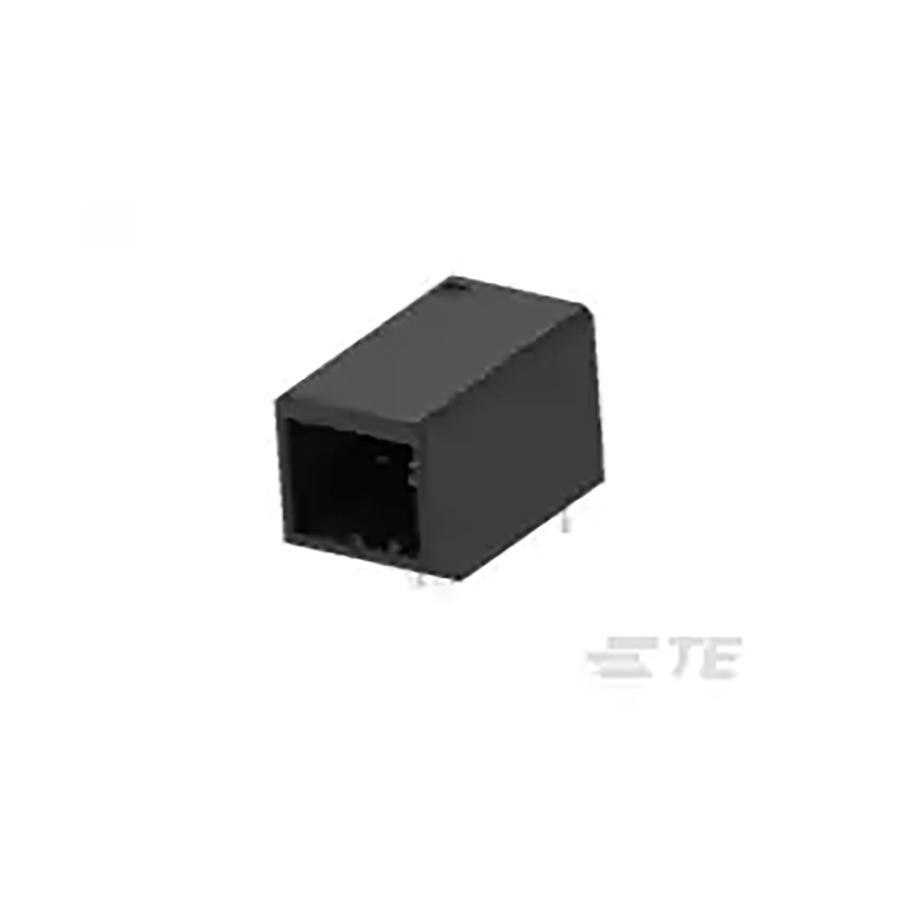

1376135-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1376135-1
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Plug, Tab Number of Positions:3 Pitch:2.4892 mm
| Parameter | Value |
|---|---|
| Length | 10.1854 mm |
| Width | 17.69 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 9.45 mm |
| Packaging | Tube |
| Voltage Rating | 250 V |
| Depth | 17.69 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.4892 mm |
| Number of Terminals | 3 |
| Current Rating | 5 A |
| Max Voltage Rating (DC) | 250 V |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Right Angle |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Shielding | Unshielded |
| Number of Contacts | 3 |
| ELV | Compliant |
| Connector Type | Header, Plug, Tab |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 5 A |
| Housing Color | Black |
| PCB Thickness | 1.6002 mm |
| Tail Length | 3.4036 mm |
| VDE Tested | No |
| Preloaded | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
| Mating Retention | With |
| Mating Alignment | With |
| Termination Post Length | 3.33 mm |
Stock: 82
Distributors
pcbx
pcbxUnit Price$1.43616
Ext.Price$1.43616
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.43616 | $1.43616 |
| 10 | $1.19251 | $11.92510 |
| 25 | $1.10633 | $27.65825 |
| 50 | $1.02638 | $51.31900 |
| 100 | $0.95220 | $95.22000 |
| 300 | $0.88338 | $265.01400 |
| 500 | $0.81955 | $409.77500 |
